Description
Quick Specs
- From Factory: Half-Width Blade Server
- Processors | Max: 44 Cores
2 x Intel E5-2600 (v3 or v4) - Memory | Max: 1.5TB
24 2400MHz DDR4 DIMMs - Storage | Max: 7.6TB

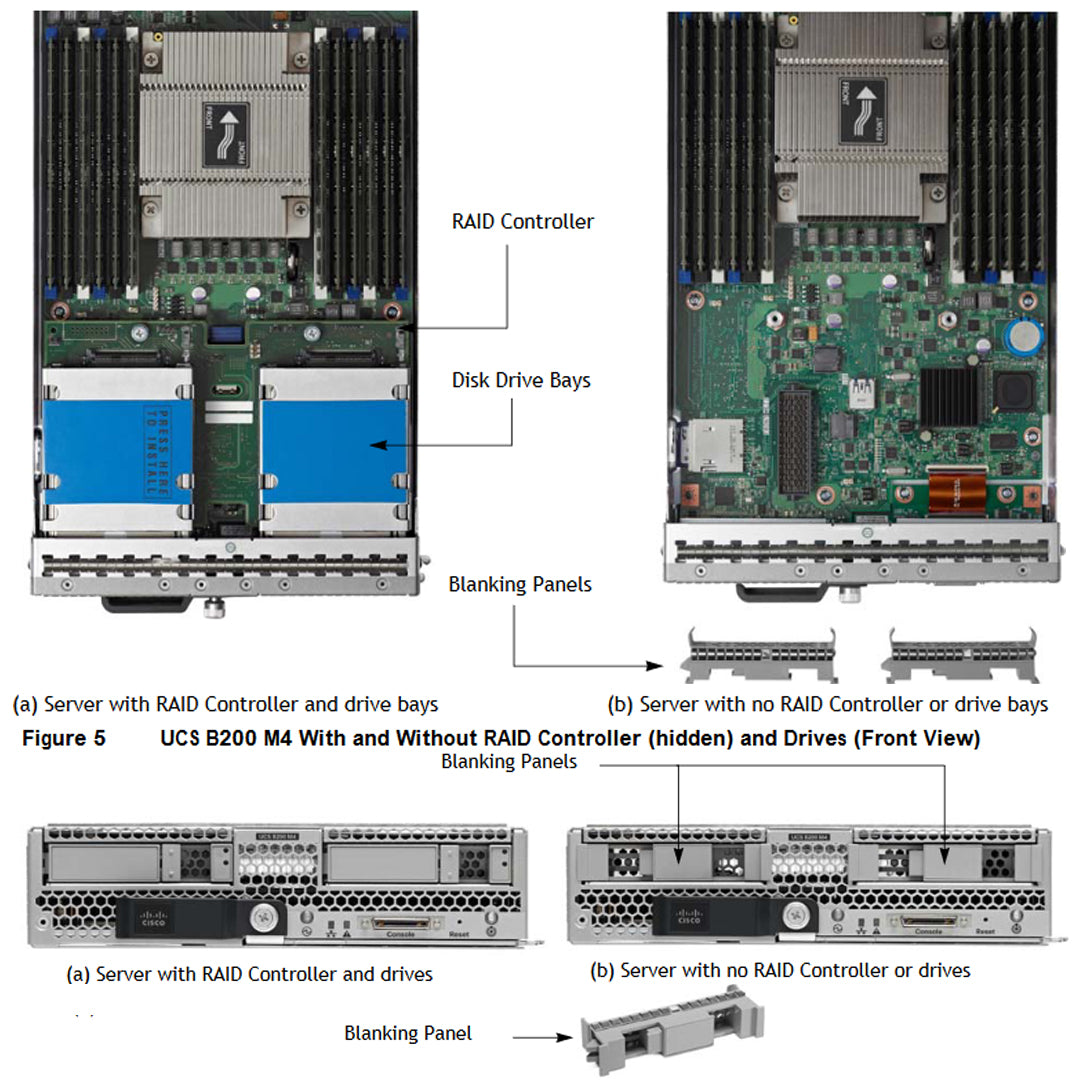

2 x SAS/SATA (NVMe v4 only) - Controllers: UCSB-MRAID12G (v3, v4),
UCSB-MRAID12G-HE (v4),
UCSB-LSTOR-BK (v3, v4),
UCSB-LSTOR-PT (v4), - Adapters: 2 x Mezzanine Slots
- Throughput I/O: 80 Gbps
- GPU: Only supported with a v4 CPU
Other Versions:
- Enclosure: UCS 5108
- UCS B200 M4
- UCS B200 M5
- UCS B200 M6
The Cisco UCS B200 M4 Blade Server is a high-performance, half-width blade server designed to deliver exceptional computing power in a compact form factor. It supports up to two Intel Xeon E5-2600 v3 or v4 series processors, providing up to 44 cores per server. The server can accommodate up to 1.5TB of DDR4 memory across 24 DIMM slots, ensuring rapid data access and processing. For storage, it offers options for up to two 2.5-inch SAS, SATA, or SSD drives, allowing for flexible and high-speed data storage configurations. Integrated with Cisco's Unified Computing System (UCS) technology, the B200 M4 facilitates seamless management and scalability within data center environments.
The Cisco UCS B200 M4 Blade Server is engineered to address the demanding requirements of modern data centers and enterprise applications. Its robust processing capabilities and substantial memory capacity make it ideal for workloads such as virtualization, database management, and high-performance computing. The server's flexible storage options cater to diverse data needs, from transactional databases to large-scale data analytics. By integrating with Cisco UCS Manager, the B200 M4 simplifies system management, enhances operational efficiency, and accelerates deployment times, making it a strategic choice for organizations seeking to optimize their IT infrastructure.
mLOM Slot - Dedicated Slot
- 1340/1240 adapter only
- Up to dual 4x10 Gbps ports w/ Expander
The VIC 1340 is only supported with the 6200 and 6300 Series Fabric Interconnects. The VIC 1240 is supported by 6100, 6200, and 6300 Series Fabric Interconnects.
Adapter Slot - All other cards plug into the adapter slot
- Supports Port Expander (4x10Gb)
- Supports GPU
Prot Expander vs Adapter. They both provide 40 Gbps to the Enclosure 5108, but the Adapter configuration provides redundancy.
GPU G6 Adapter (v4 CPU ONLY) - Do not have network connectivity
- GPU controlled by CPU 2
- GRID 2.0 SW required for VDI
The GPU is required when there is high-performance computing (HPC), machine learning, and virtualization.
